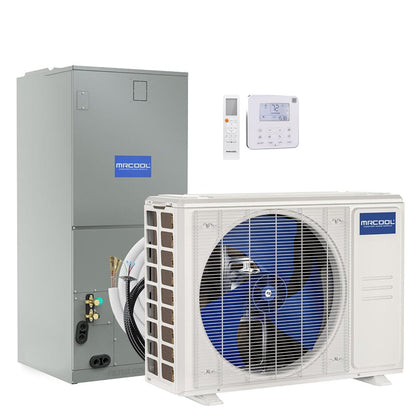

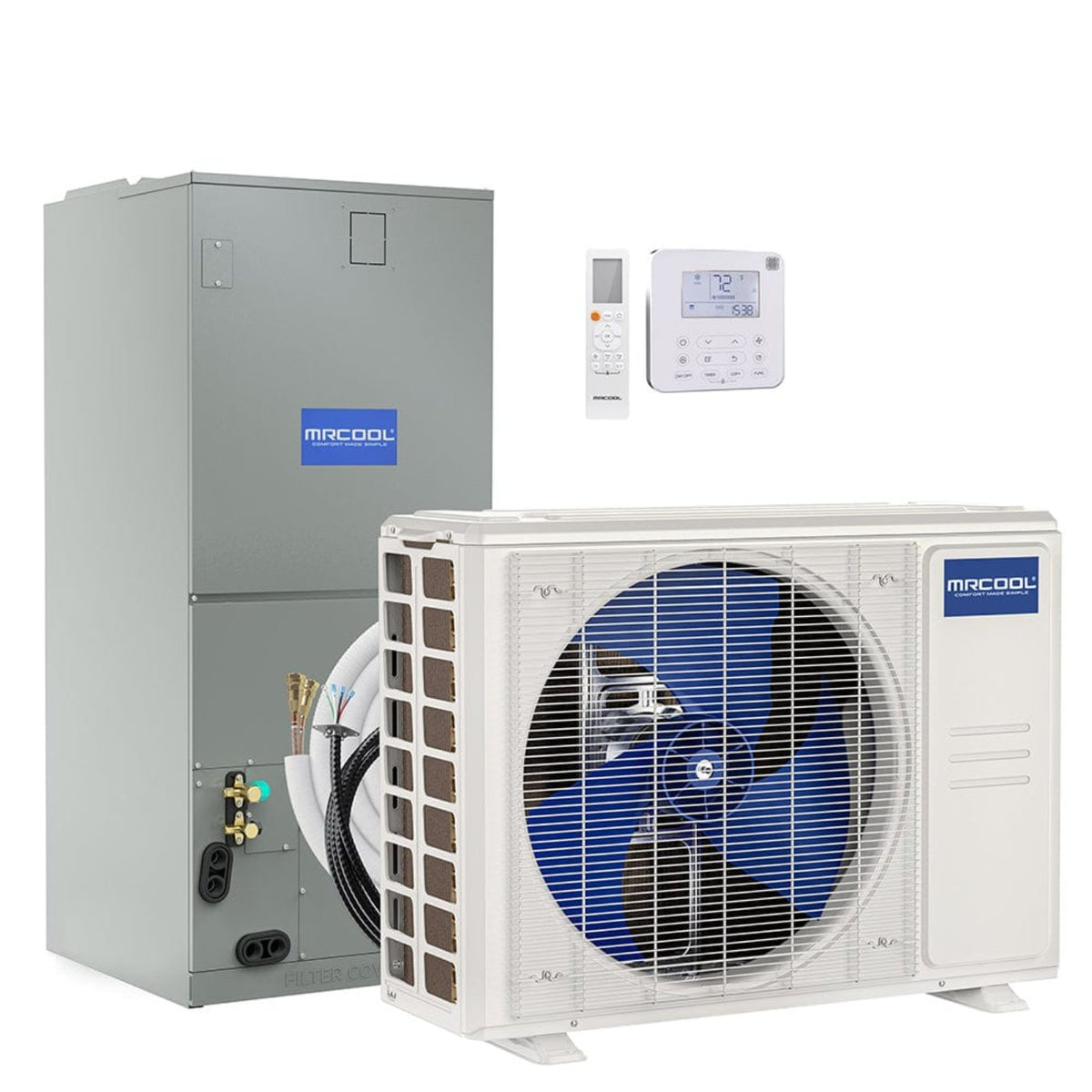

MRCOOL 36K BTU 18 SEER Ducted Air Handler and Condenser, CENTRAL-36-HP-230-00

Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

This MRCOOL 36k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System will be one of the best decisions that you could make for your comfort, as it’ll help you save money and time, all while increasing your comfort! Take your comfort to the next level as you enjoy the temperature you deserve throughout 1,500 square feet. The affordable multi-position air handler can accommodate upflow, downflow, horizontal left and horizontal right airflow configurations. This system is compatible with the MrCool® No-Vac® Quick Connect® line set. This system’s variable speed condenser is able to keep energy consumption low and comfort levels high.

You can identify any error codes on the handler’s panel or on the thermostat. You’ll be breathing clean thanks to the use of filters, making for a pure and comfortable living environment. This system is protected by a 10 year parts warranty and a 10 year service warranty. Trust in this MRCOOL 36k BTU 18 SEER Central Ducted DC Inverter Heat Pump System to bring you the comfort you crave and save you money.

Key Features

• High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

• Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.

• Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

• Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

• 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

• Optional heating kit available

• R-410A environmentally friendly refrigerant

Specifications

Product Manual

• Installation Manual

• Product Brochure

• Remote Manual

• Warranty Doc

• Accessory Manual

What Our Experts Think

• High Capacity: The 36,000 BTU output provides powerful cooling for larger spaces, ensuring consistent temperature control even in hot weather.
• Energy Efficient: With an 18 SEER rating, this system offers great energy savings without compromising performance.
• Seamless Integration: Designed for easy integration into existing duct systems, offering consistent and unobtrusive airflow throughout your home.
• Reliable Performance: Built with high-quality components for durability and long-lasting operation, even in demanding conditions.
• Quiet Operation: Engineered to run quietly, maintaining a comfortable and peaceful indoor environment.
• Versatile Application: Ideal for larger homes or commercial spaces, providing efficient cooling for diverse needs.

Q&

Q: What is the MRCOOL 36K BTU 18 SEER Ducted Air Handler and Condenser system?
A: This system combines a 36,000 BTU air handler and condenser, offering efficient heating and cooling with an 18 SEER rating for energy savings.

Q: What are the key features of this system?
A: It features a 36K BTU cooling capacity, an 18 SEER rating for energy efficiency, and is designed for use in central HVAC systems.

Q: How energy-efficient is this system?
A: With an 18 SEER rating, this system provides excellent energy efficiency, reducing operating costs while maintaining consistent climate control.

Q: What is the cooling capacity of the system?
A: The system is designed for 36,000 BTU of cooling, ideal for larger residential or light commercial spaces.

Q: Is this system easy to install?
A: Yes, it is designed to integrate smoothly with compatible MRCOOL components, ensuring straightforward installation for your central HVAC setup.

Maintenance Tips

• Air Filter Maintenance: Clean or replace air filters every 1-3 months to prevent airflow issues and maintain system efficiency.
• Clean Coils: Inspect and clean both the evaporator coil (air handler) and condenser coil (heat pump) annually to prevent dirt buildup and maintain optimal heat transfer.
• Inspect Refrigerant Lines: Regularly check refrigerant lines for signs of leaks or damage, ensuring the system operates with the correct refrigerant charge.
• Check Condensate Drain: Clear the condensate drain periodically to prevent clogs and ensure proper water drainage from the unit.
• Outdoor Unit Care: Keep the condenser unit free from debris and ensure at least 2 feet of clearance around the unit for proper airflow and efficient operation.
• Electrical Inspection: Examine electrical components, connections, and wiring for any signs of wear, corrosion, or loose connections to ensure safe operation.
• Ductwork Inspection: Check ducts for leaks or blockages to ensure efficient airflow and to prevent energy loss.
• System Test: Periodically run the system to ensure it is operating correctly, especially after long periods of inactivity.
• Annual Professional Service: Schedule an annual maintenance service with a professional technician to ensure the system operates efficiently, safely, and effectively.
