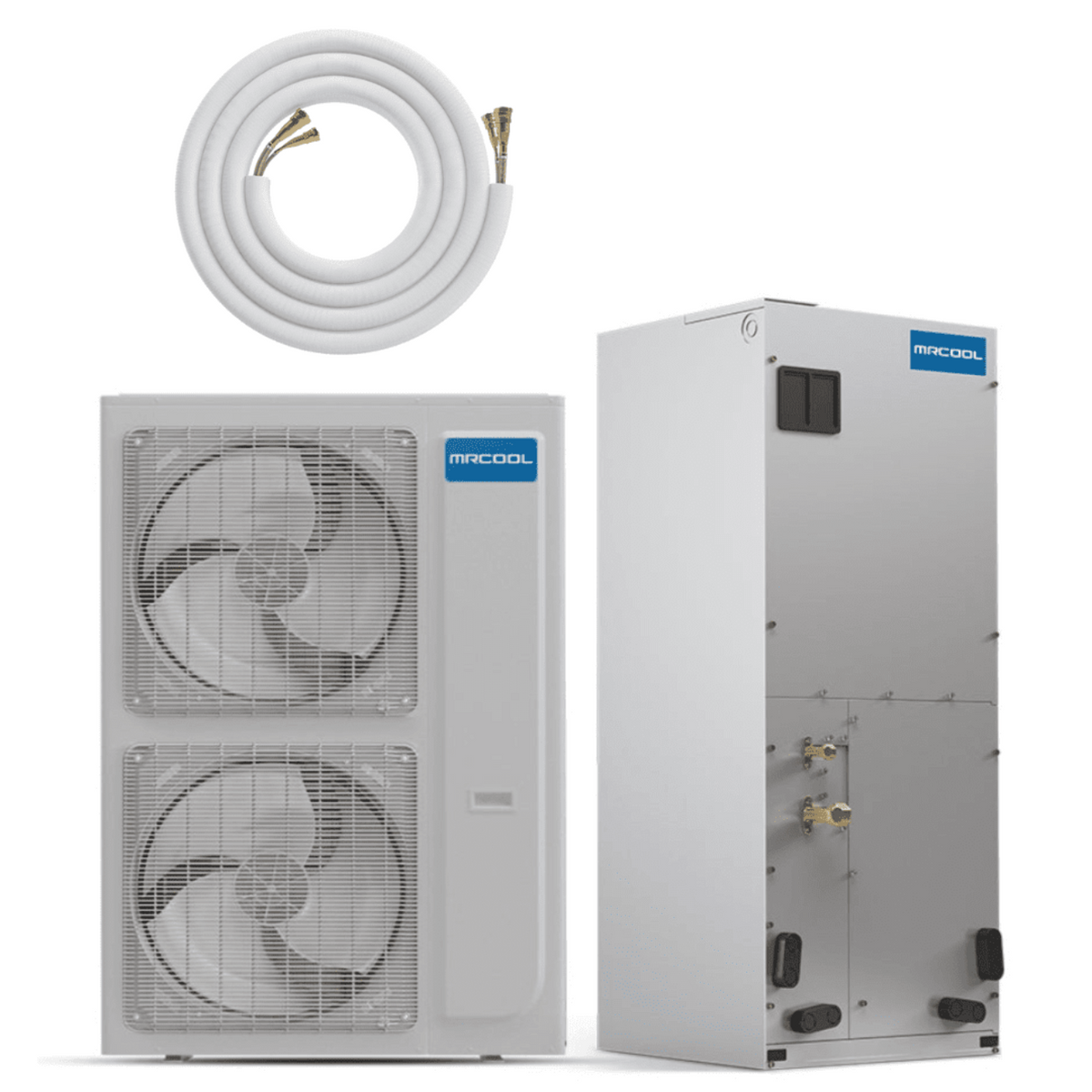

MRCOOL Universal 4-5 Ton 18 SEER Central Heat Pump Split System with 25 ft. Lineset, MDU18048060-25

Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

Key Features

Condenser

• The 4 to 5 Ton 18 SEER MrCool Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end.

• Superior Heat Pump. 100% Heating Capacity to 14°F, 100% Cooling Capacity to 109.4°F

• Ultra Quiet. Internal Fan Blade Creates Low Noise

• Environmentally Friendly. Factory Charged and environmentally friendly R410

Air Handler

• This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.

• Anti Shock. Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker

• Easy to clean. Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration

• Multi-Position. Upflow or Horizontal

Line Set 25 ft.

• Kink Resistant. Kink Resistant for Easier Bending During Installation

• Pre-Charged. Pre-Charged R-410A to 1.94 oz for 100% Accuracy

• UV Protective. Strong 3/4" Gator-Flextra UV Protective Insulation Sleeve

• Easy to Use. Simple to Use Screw-on Quick Connect Valves

Specifications

System Includes

• MRCOOL Universal Series Heat Pump Condenser 4-5 Ton, MDUO18048060

• MRCOOL Universal High ESP 54,000 BTU Air Handler, MDUI18048060E

• MRCOOL 25 ft. Pre-Charged 3/8" x 3/4" No-Vac Quick Connect Line Set, NV25-3834

Product Manual

Condenser

• User Manual

• Product Brochure

• Performance Specifications

• AHRI Certification

Air Handler

• Installation Manual

• Product Brochure

What Our Experts Think

• Energy-Efficient: With an 18 SEER rating, this system provides excellent energy savings while delivering superior heating and cooling efficiency.
• High Capacity: Supports both 4-5 ton configurations, ensuring optimal performance for larger spaces that require more power for climate control.
• Year-Round Comfort: Provides efficient cooling during the summer and reliable heating during the winter, keeping your home or space comfortable year-round.
• Extended Lineset: Includes a 25 ft. lineset, offering more flexibility during installation for larger or more complex layouts.
• Quiet Operation: Designed to run quietly, minimizing noise for a peaceful and comfortable indoor environment.
• Eco-Friendly Refrigerant: Uses environmentally safe refrigerants, adhering to modern standards for sustainability and reducing environmental impact.
• Easy Installation: The universal design and extended lineset length make it easier to install in a variety of spaces and configurations.

Q&

Q: What is the cooling and heating capacity of this system?
A: This system is available in 4 to 5-ton options, designed for spaces ranging from 2,000 to 2,800 sq. ft.

Q: What is the SEER rating?
A: The system offers an 18 SEER rating, ensuring efficient energy use and reducing operating costs.

Q: Does this system come with a lineset?
A: Yes, it includes a 25 ft. lineset, offering greater flexibility for installations in larger or more complex spaces.

Q: Is this a split system?
A: Yes, this system is a split system with an indoor air handler and an outdoor heat pump unit.

Q: Can this system handle both heating and cooling?
A: Yes, it provides cooling as an air conditioner and heating through the heat pump, ensuring year-round comfort.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper setup and local code compliance.

Q: What refrigerant does this system use?
A: The system uses R-410A refrigerant, which is environmentally friendly and energy-efficient.

Q: What makes this system unique?
A: The MRCOOL Universal system offers an 18 SEER rating with the added convenience of a 25 ft. lineset, providing greater installation flexibility for larger homes or spaces.

Q: Is it compatible with smart thermostats?
A: Yes, this system is compatible with most smart thermostats, allowing for enhanced control and energy efficiency.

Maintenance Tips

• Air Filter Maintenance: Inspect and clean or replace the air filters every 1–3 months to maintain optimal airflow and system efficiency.
• Outdoor Unit Care: Keep the outdoor condenser unit free from debris like leaves, dirt, and branches. Ensure at least 2 feet of clearance around the unit to allow proper airflow.
• Check Refrigerant Levels: Have a professional inspect refrigerant levels annually to avoid overloading the system and to maintain peak performance.
• Coil Cleaning: Clean the evaporator and condenser coils yearly to remove dirt and debris that may affect heat exchange efficiency.
• Inspect Ductwork: Check ducts for leaks or obstructions and seal any gaps to prevent energy loss and ensure efficient airflow.
• Thermostat Calibration: Test and calibrate the thermostat to ensure accurate temperature readings and energy-efficient operation.
• Condensate Drain Line: Ensure the condensate drain line is clear and free of blockages to prevent water damage and maintain system performance.
• Annual Professional Service: Schedule yearly maintenance with a qualified technician to ensure proper functioning and to address potential issues before they become costly.
• Monitor for Strange Noises: Pay attention to any unusual sounds such as rattling or grinding, which could indicate mechanical problems needing repair.
