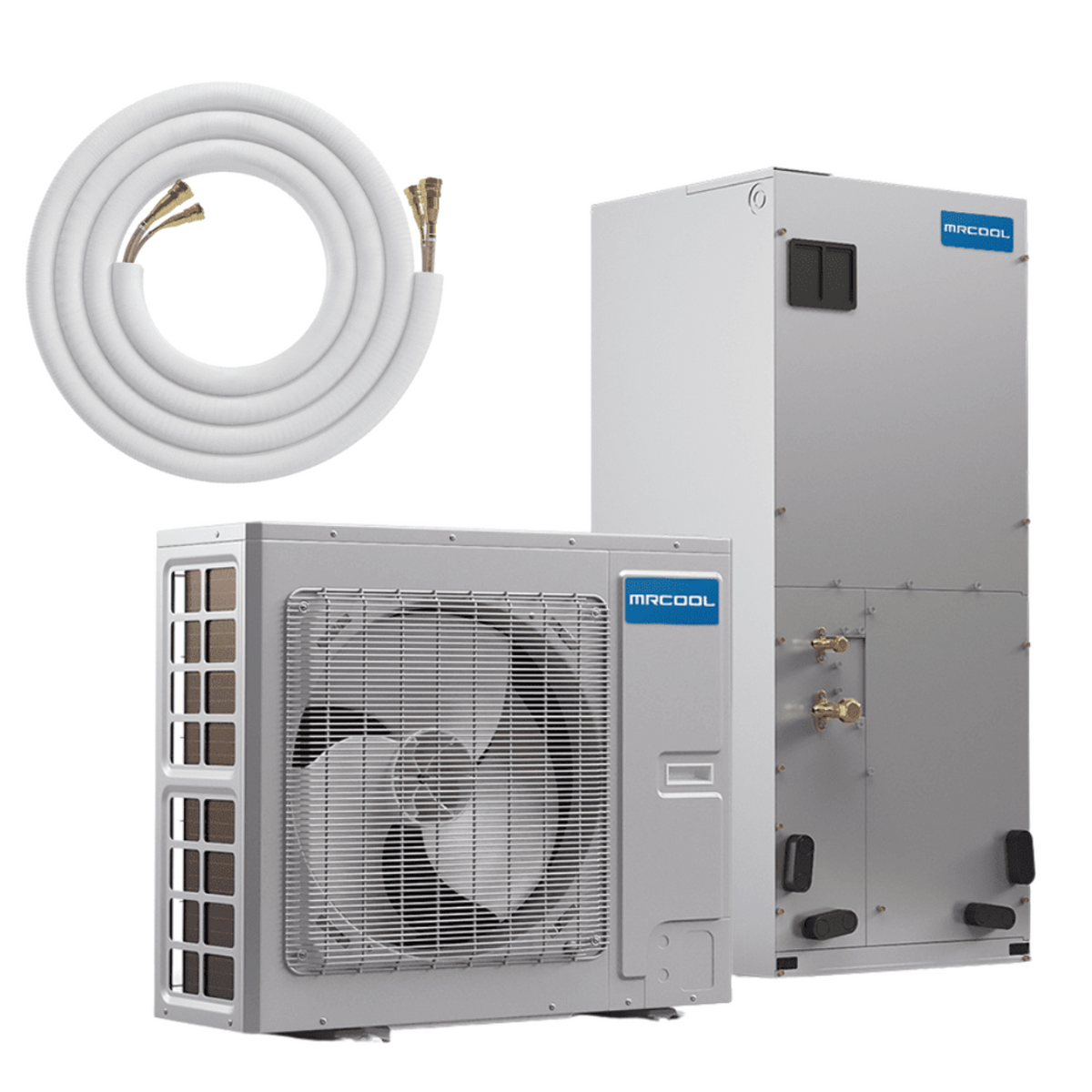

MRCOOL Universal 2-3 Ton 20 SEER Central Heat Pump Split System with 15 ft. Lineset, MDU18024036-15

See Features Below

Condenser

• The 2 to 3 Ton 20 SEER MRCOOL Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end.

• Superior Heat Pump. 100% Heating Capacity to -5°F, 100% Cooling Capacity to 115°F

• Ultra Quiet. Internal Fan Blade Creates Low Noise

• Environmentally Friendly. Factory Charged and environmentally friendly R410

Air Handler

• This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.

• Anti Shock. Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker

• Easy to clean. Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration

• Multi-Position. Upflow or Horizontal

Line Set 15 ft.

• Kink Resistant. Kink Resistant for Easier Bending During Installation

• Pre-Charged. Pre-Charged R-410A to 1.94 oz for 100% Accuracy

• UV Protective. Strong 3/4" Gator-Flextra UV Protective Insulation Sleeve

• Easy to Use. Simple to Use Screw-on Quick Connect Valves

Specifications

System Includes

• MRCOOL Universal Series Heat Pump 36K BTU Condenser 2-3 Ton, MDUO18024036

• MRCOOL Universal High ESP 36,000 BTU Air Handler, MDUI18024036E

• MRCOOL 15 ft. Pre-Charged 3/8" x 3/4" No-Vac Quick Connect Line Set, NV15-3834

Product Manual

Condenser

• User Manual

• Product Brochure

• Performance Specifications

• AHRI Certification

Air Handler

• User Manual

• Product Brochure

• Performance Specifications

• AHRI Certification

How to check for the qualifying tax rebate credit?

1. Simply visit the Rebate Center.

2. Enter in your Zip Code

3. Search for the Product Code: MDU18024036

4. See if this qualified & how much your tax rebate will be!

What Our Experts Think

• Superior Efficiency: With a 20 SEER rating, this system delivers exceptional energy savings while providing optimal heating and cooling performance.
• Versatile Capacity: Supports both 2-3 ton configurations, making it adaptable for various home sizes or light commercial spaces.
• All-Season Comfort: Provides reliable heating in the winter and efficient cooling in the summer, ensuring year-round comfort.
• Quiet Operation: Designed to operate quietly, maintaining a peaceful living or working environment.
• Complete Installation Kit: Comes with a 15 ft. lineset, simplifying the installation process and saving time.
• Flexible Installation: The universal design allows for flexible placement, making it compatible with a wide range of indoor spaces.
• Environmentally Friendly: Uses eco-friendly refrigerants, meeting modern standards for sustainability and reducing environmental impact.

Q&

Q: What is the cooling and heating capacity of this system?
A: This system is available in 2 to 3-ton options, suitable for spaces ranging from 1,000 to 1,800 sq. ft.

Q: What is the SEER rating?
A: It boasts an impressive 20 SEER rating, providing superior energy efficiency and lower operating costs.

Q: Does this system include a lineset?
A: Yes, it comes with a 15 ft. lineset, making installation easier and more convenient.

Q: Is this a split system?
A: Yes, it is a split system with an indoor air handler and an outdoor heat pump unit.

Q: Can this system handle both heating and cooling?
A: Yes, it provides both cooling (air conditioning) and heating (heat pump), offering year-round comfort.

Q: Does it require professional installation?
A: Yes, professional installation is recommended for proper setup and to comply with local building codes.

Q: What refrigerant does this system use?
A: It uses the environmentally friendly R-410A refrigerant for optimal performance.

Q: What makes this system unique?
A: The MRCOOL Universal system features a high 20 SEER rating for energy savings, coupled with the convenience of an included 15 ft. lineset for easier installation.

Q: Is it compatible with smart thermostats?
A: Yes, this system is compatible with most smart thermostats, allowing for efficient temperature control and energy management

Maintenance Tips

• Clean the Air Filters: Check and clean or replace the air filters every 1–3 months to ensure smooth airflow and efficient performance.
• Clear the Outdoor Unit: Keep the condenser unit free from debris such as leaves, grass, and dirt. Ensure at least 2 feet of clearance around the unit for optimal airflow.
• Refrigerant Inspection: Have a professional inspect refrigerant levels annually to ensure the system is running efficiently without overworking the compressor.
• Coil Cleaning: Clean the evaporator and condenser coils annually to remove dirt buildup and ensure maximum heat transfer efficiency.
• Check Ductwork: Inspect for leaks or blockages in the ductwork. Seal any gaps to prevent energy loss and maintain proper airflow.
• Thermostat Calibration: Ensure the thermostat is functioning correctly and set for optimal energy-efficient temperature control.
• Maintain Condensate Drain: Regularly inspect and clear the condensate drain line to prevent clogs and water damage.
• Annual Professional Service: Schedule a professional maintenance check every year to ensure the system runs at peak efficiency and address any potential issues early.
• Monitor for Abnormal Noises: Pay attention to any strange sounds during operation, such as rattling or grinding, which may indicate mechanical issues needing repair.
